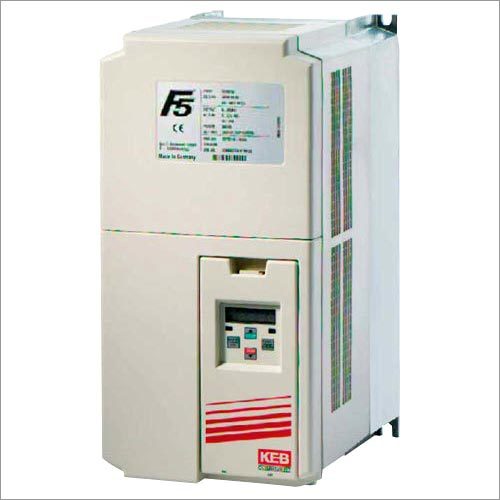

Sigmatek KEB AC Drive

Next > >

Get a Price/Quote

Send Inquiry

Product Code : 01

Price And Quantity

Minimum Order Quantity
1 Unit
Price
25000 INR/Unit

Product Description

KEB AC Drive is a widely demanded industrial automation drive for which we are an acclaimed supplier for our clients. It is precisely designed using top-notch quality raw material and hi tech machinery to maintain high level of precision under the strict vigilance of our quality controllers. KEB AC Drive is available in several technical specifications to cater to the demands of diverse clients. We offer it at cost- effective prices in domestic as well as overseas markets among our competitors.

Being a dominant distributor of Automation Products, the company has been highly active in offering KEB AC Drives. The drive comes into different use in Automation Industry. These drive comes into a broad variety of specification in order to cater to the all kinds of industry professionals KEB AC Drives need. This product variety is available in different specification hence comes in different model numbers.

Along with the same, we are also an Authorised Channel Partner of KEB.

Key Features of AC Drives:

Sensor-less motor management algorithm
8 programmable parameter sets
Compact size optimizing panel design
Wide input operating voltage
Ambient temperature 45°C

The wide input operating voltage band is ideally suited to Indian conditions:

230V Class - 180V to 260V
400V Class - 305V to 500V
690V Class - 600V to 760V

Optional plug-in interface feedback cards:

Incremental encoder
Absolute encoder
Sine-Cosine encoder
Resolver
Hiperface encoder
Tachometer

Model Number of KEB AC Drives, we offer are listed below:

Model	Model	Model
07F5AlD-#	27F5AXP-#	05F5A1A-#
09F5A1D-#	28F5AXP-#	07F5A1D-#
10F5A1D-#	29F5AXP-#	09F5A1D-#
12F5AlD-#	30F5AXP-#	10F5A1D-#
13F5A1D-#	32F5AXP-#	12F5A1D-#
14F5A1D-#	33F5AXP-#	13F5A1E-#
15F5A1E-#	34F5AXP-#	14F5A1E-#
16F5A1G-#	35F5AXP-#	15F5A1G-#
17F5A1G-#	36F5AXP-#	16F5AXH-#
18F5A1G-#	37F5AXP-#	17F5AXH-#
19F5AXH-#	38F5AXP-#	18F5AXR-#
20F5AXH-#	39F5AXP-#	19F5AXR-#
20F5AXR-#		20F5AXR-#
21F5AXR-#		21F5AXR-#
22F5AXR-#
23F5AXR-#
24F5AXR-#
25F5AXU-#
26F5AXU-#
27F5AXU-#
28F5AXP-#
29F5AXP-#
30F5AXW-#
31F5AXW-#
32F5AXW-#
33F5AXP-#
34F5AXP-#
35F5AXP-#
36F5AXP-#
37F3AXP-#

Connection 1/3 phase 230V and 3 phase 400V optional AC- or DC- supply in one unit
Optimized KEB - SMM control procedure (sensorless motor management)
Analog input 0... 10V, + 10V, 0/4... 20 mA (housing D, E)
Programmable analog output 0... 10V
5 programmable digital inputs
2 programmable relay outputs
4 programmable software inputs/outputs
8 free-to-program parameter sets including S-curve, ramp stop, Power-Off-function, DC-braking, PID technology regulator, electronic motor protection, brake control, internal timer, counter input
Output frequencies up to 1600 Hz, output voltage control, adjustable switching frequencies up to 16 kHz
Controlled positioning to end position
High-dynamic sampling of the control terminals and the serial interface in less than 2 ms
+ / - Intermediate circuit connection, internal braking chopper, motor-PTC-evaluation, hardware current control
Integrated filter according to EN 55011/B (option: B, D, E-housing)
Potential-free operator connection and serial interfaces for CAN open, Ethernet, MODBUS, KEB-HSP 5 / DIN 66019-II, Profibus, Interbud, DeviceNet, Sercos Interface
